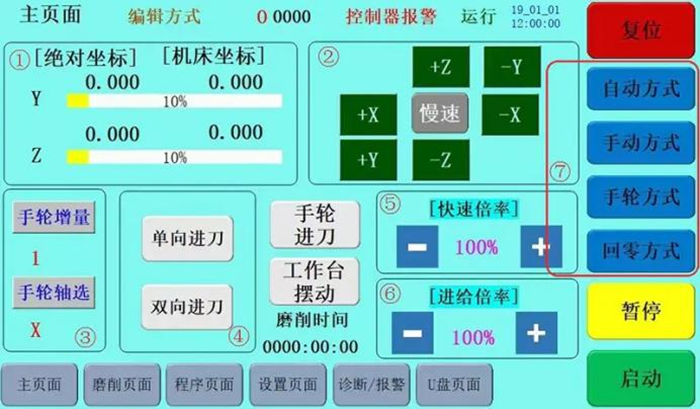

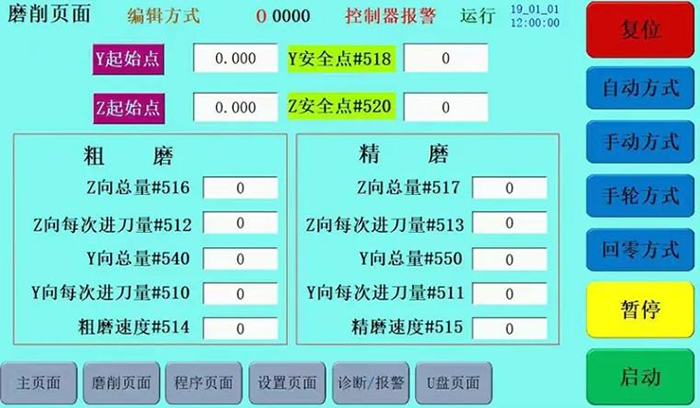

High precision/High speed/easy to operate CNC surface grinding machine X axis hydraulic /YZ axis servo/CNC system. Cross slide structure, double V rail of table/double V rail of saddle, Z axis rail. Optional grinding wheel bottom dressing cycle function, the system control page is convenient to manually set dressing parameters.
Get A Quote More Products
PREV：M50100 Precision Surface Grinding Machine
NEXT：M3060 Precision Surface Grinding Machine
  • Introduction
  • Parameter
  • Product Configuration Table

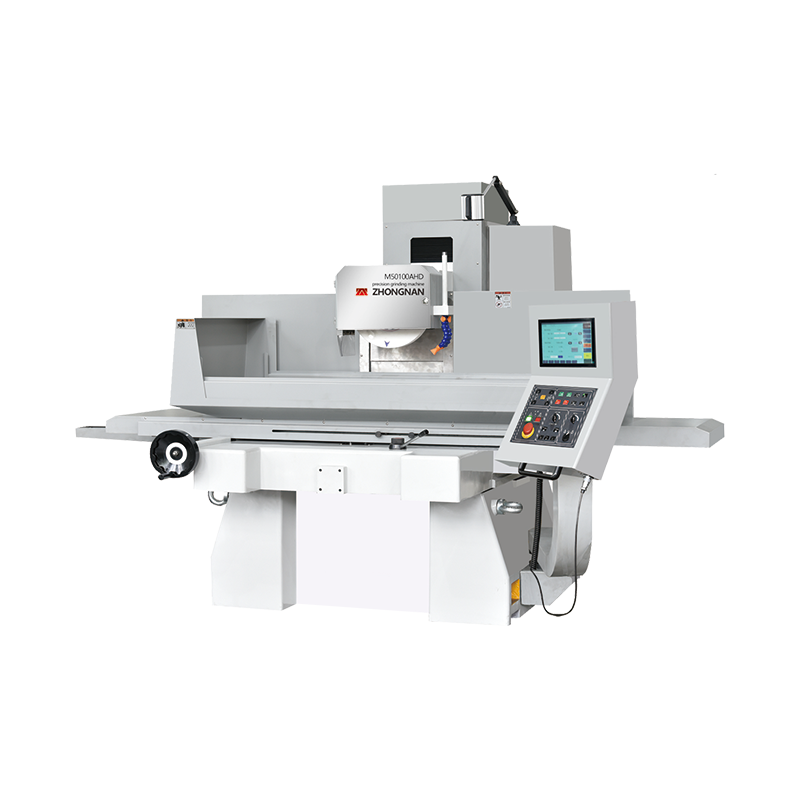

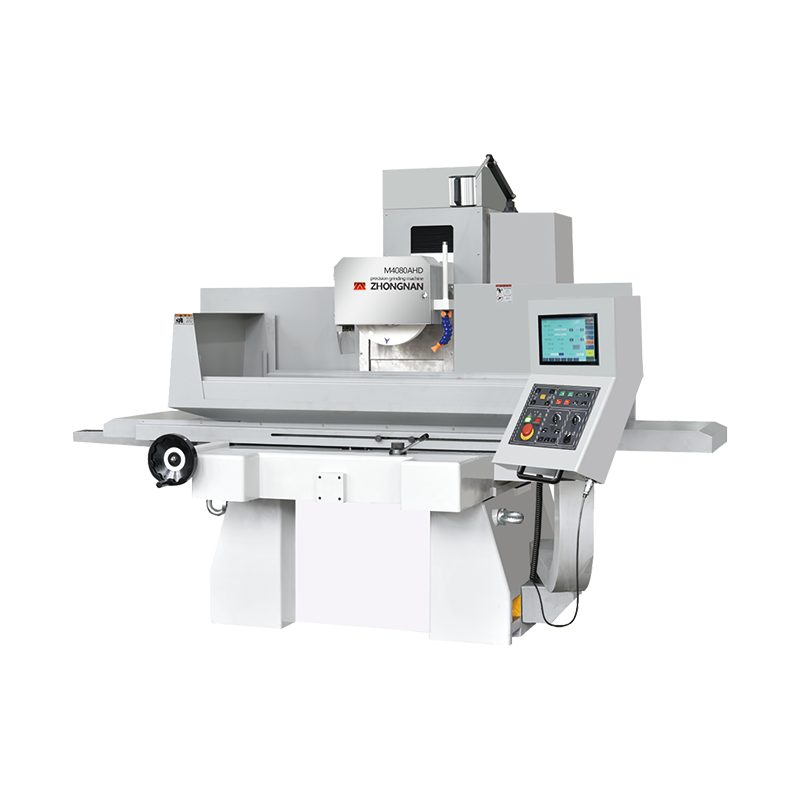

  • M4080 horizontal axis rectangular table surface grinding machine is one of the high performance machine tools with CNC feed control grinding developed by our company. The machine tool structure design is more reasonable, and the machine tool rigidity, accuracy retention and reliability are close. It is mainly suitable for the precision grinding of various metal materials, bevel and specific shape, and is widely used in automotive, electronics, medical equipment, precision machinery, mold manufacturing and other industries.

    Structural characteristics

    ● The machine adopts cross pallet layout, and the main components adopt

    new symmetrical structure.

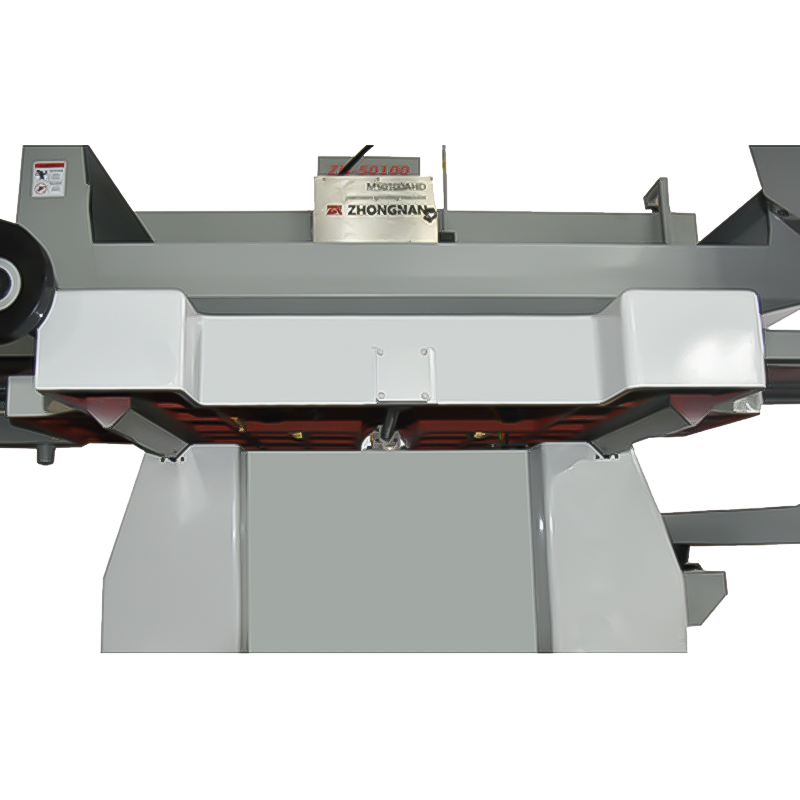

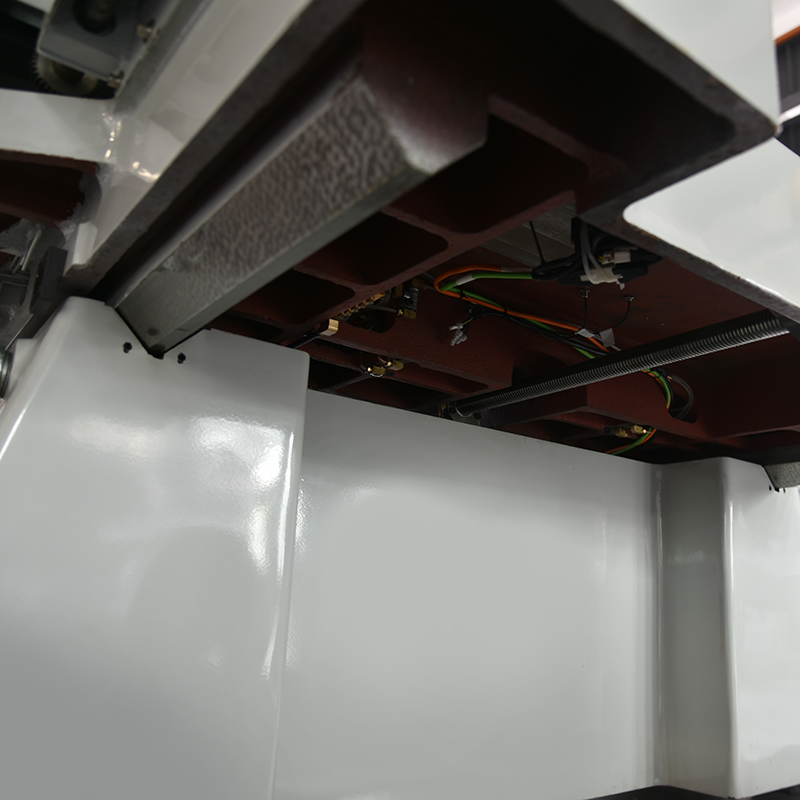

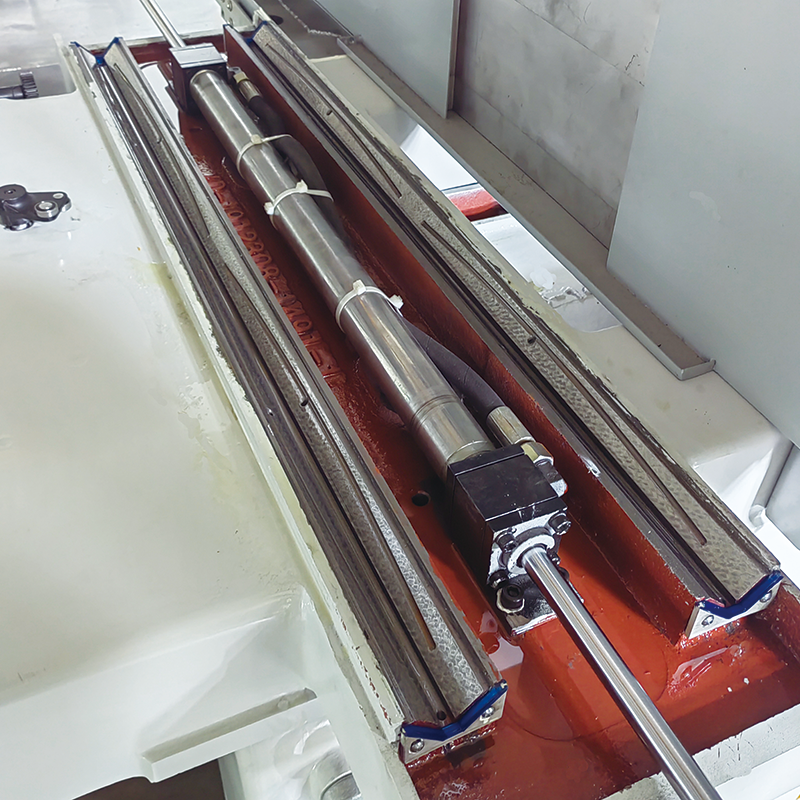

    ● The table and saddle adopt double V guide structure, which can maintain

    the machine precision for a long time through precision scraping.

    ● The grinding head is driven by prepressed precision wire rail and

    precision ball screw to ensure high precision feed.

    ● The spindle is a refined grinding head spindle, and the spindle motor is

    directly connected with the spindle with an elastic coupling.

    ● Y/Z axis servo motor control, can achieve automatic grinding, improve processing efficiency.

    ● Automatic lubrication pump is used to lubricated the screw guide rail to improve the wear life.

    M2050 horizontal axis rectangular table surface grinding machine function description

    1. Working mode: manual, continuous, semi-automatic, fully automatic

    2. Workbench mode: manual, automatic (grinding head before and after hydraulic pressure, ignore)

    3. Grinding head: stop, run

    4. Hydraulic: stop, run

    5. Water pump: stop, run

    6. Y axis step amount: automatic Y axis front and rear step amount

    7. Automatic grinding, display grinding surplus.

    2. coarse grinding Z feed rate: each feed amount (unit UM)

    Rough grinding Z Grinding total: total feed (unit UM)

    Grinding Z feed rate: per feed (unit UM)

    Grinding Z Total grinding: Total feed (unit UM)

    Light grinding: no feed grinding times

  • project

    unit

    M4080

    Cross-slide type

    ability

    Table size (L×W)

    mm

    800×400

    The maximum amount of table movement

    around

    mm

    920

    Before and after

    mm

    450

    The maximum distance from the table to the center of the spindle

    mm

    700

    Maximum weight of the table (including suction cups)

    kg

    650

    Workbench &

    Forward and backward feeding

    Table T-slot

    mm×N

    14×3

    Table speed

    m/min

    5～25

    Front and rear electronic handwheels are fed

    mm

    0.001

    Automatic front and rear feeding

    mm

    0.1-8

    The amount of fast movement back and forth

    mm/min

    900

    Feed up and down

    The upper and lower electronic handwheels are fed

    mm

    0.001

    Upper and lower automatic feeds

    mm

    0.001-0.02

    Up and down the amount of rapid movement

    mm/min

    300

    Grinding wheel spindle

    Grinding wheel size (outer diameter× thickness × inner diameter)

    mm

    Φ350×20～40×Φ127

    Spindle speed

    50HZ

    rpm

    1450

    60HZ

    rpm

    1740

    Motor

    Spindle motor

    HP

    7.5HP

    Front and rear motors

    In

    400

    Upper and lower motors

    In

    750

    Hydraulic motor

    HP

    3

    Flush motors

    HP

    1/4

    Dimensional weight

    Machine height

    mm

    2000

    Floor area (L×W)

    mm

    2750×2500

    Machine weight

    kg

    3700

  • Standard configuration

    Seri. No.

    Name

    1

    Toolbox

    2

    Screwdriver

    3

    Electromagnetic chuck

    4

    Grinding wheel wrench

    5

    Grinding wheel

    6

    Grinding wheel clamp

    7

    Grinding wheel balance frame



    8

    Grinding wheel balance mandrel



    9

    Wheel dresser



    10

    Magnetic separator tank

    11

    Hydraulic power station





    Optional configuration

    Seri. No.

    Name

    1

    Fully protected sheet metal

    2

    Dust collector



    3

    Automatic grinding wheel dressing

    4

    Paper tape filter device



Factory

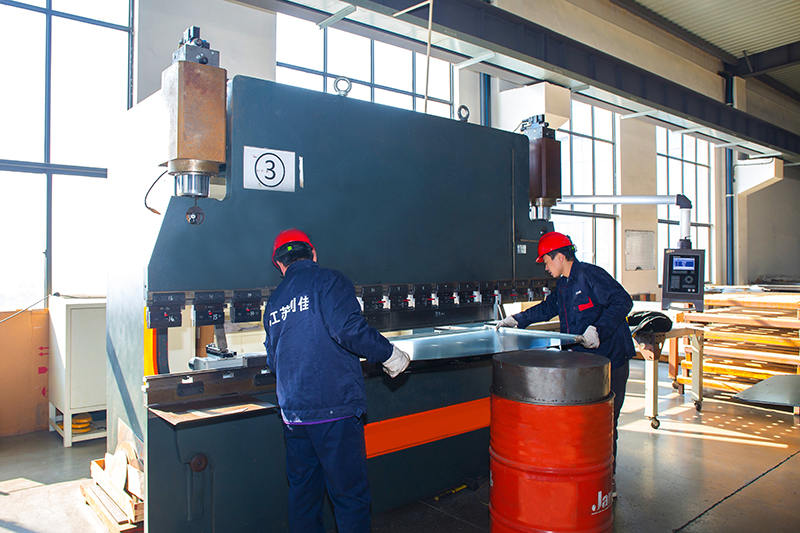

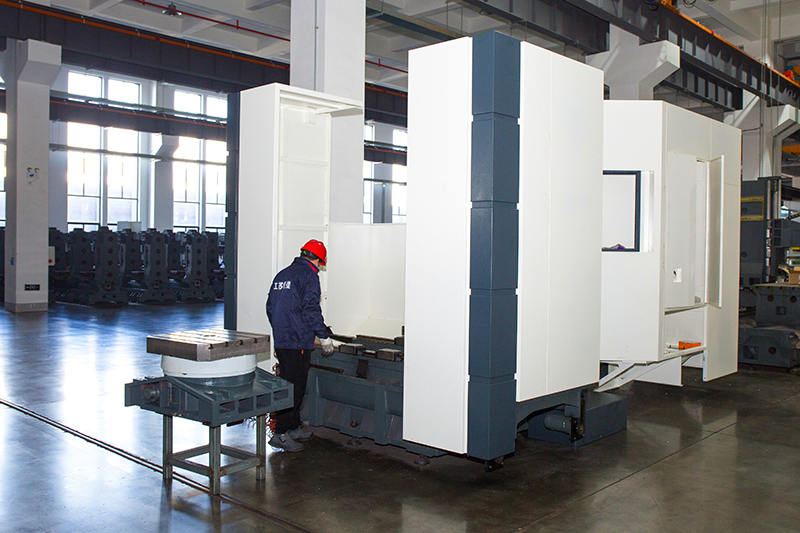

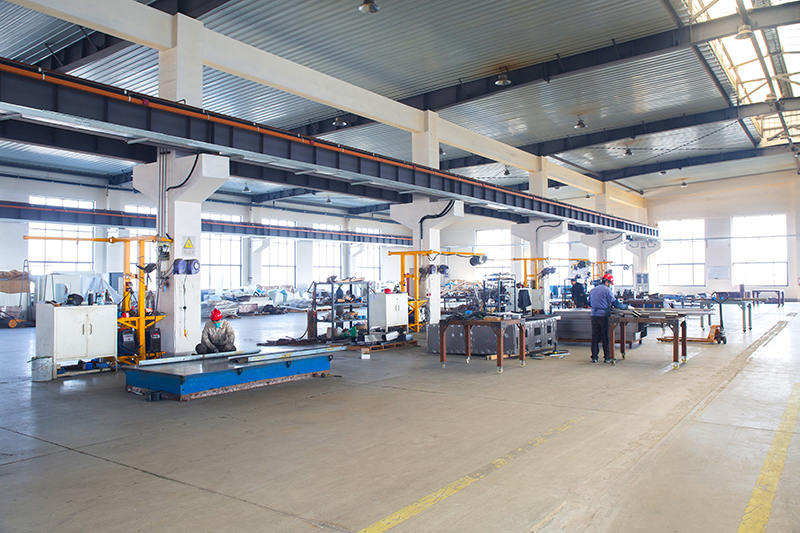

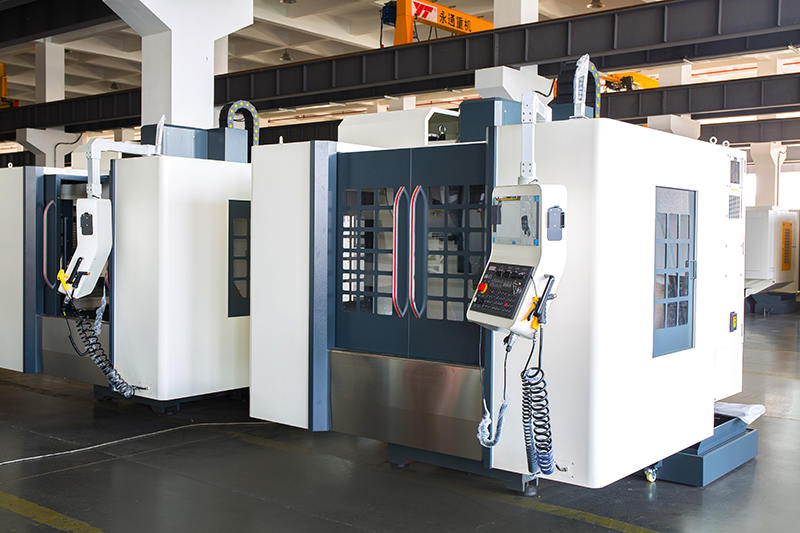

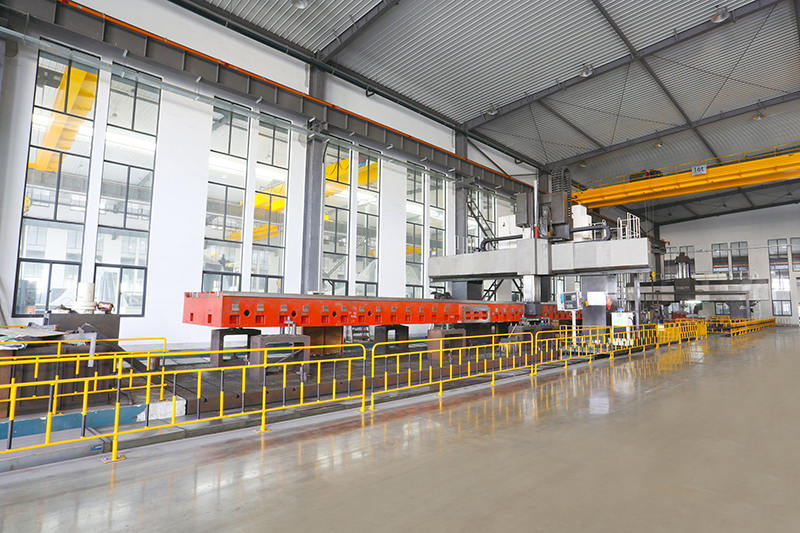

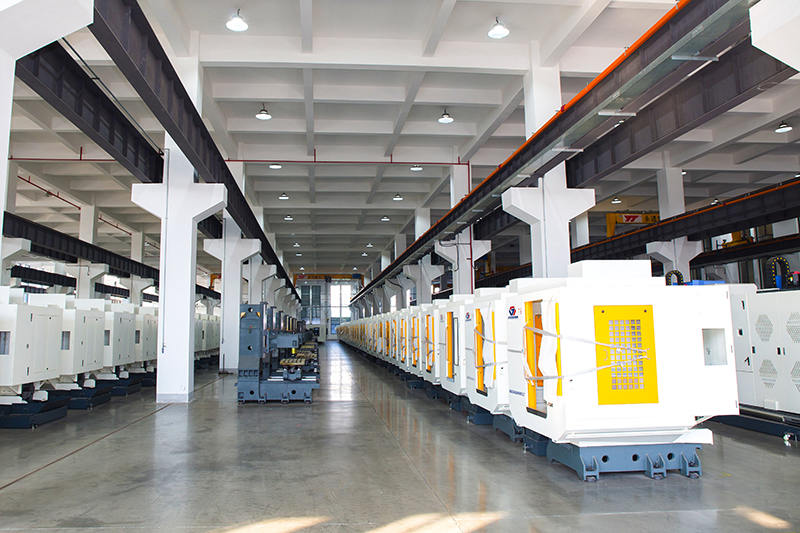

  • Factory equipment
  • Factory equipment
  • Factory equipment
  • Factory equipment
  • Factory equipment
  • Production Proces
  • Factory equipment
  • Factory equipment


Related Products

About
Jiangsu Chuangjia Machinery Co., LTD.
Jiangsu Chuangjia Machinery Co., Ltd. belongs to Nantong Zhongnan Intelligent Technology Co., Ltd. The group company owns Zhongnan CNC Marine Tool, Xinsheng CNC technology , and other subsidiaries.

Since its establishment in 2000, started with producing surface grinding machines, and gradually developed into high-end CNC machining center and manufacturing with production line of CNC vertical machining center,high precision gantry machining center, horizontal machining center, CNC vertical horizontal milling machines, turning and milling complex center, CNC precision grinding machines, casting product production line and other machine tool products line. As China Smart Dresser CNC Machine Suppliers and M4080 Precision Surface Grinding Machine Factory. The group company has a complete production line, has its own professional foundry, sheet metal processing workshop, painting workshop, etc. It is a professional manufacturer with desirable products and strong technical strength in the domestic metal cutting industry chain. The company's products are widely used in sapphire, automobile, new energy, mold manufacturing and other industrial fields.

Jiangsu Chuangjia has a production park covers 100,000 square meters.There are more than 380 employees,30 senior engines, and 20 R&D engineers. The group company has its own technology research and development center - grinding machine Research Institute, and has built the domestic advanced CAD design office,obtained a number of independent invention patents. Production capacity covers the entire production chain of casting manufacturing, machining,painting,assembly,commissioning,inspection,etc.

Our mission: "exquisite technology, adhering to professional". Our service concept is "innovation, creation, integrity, quality". Sincerely look forward to win-win cooperation with you and create a good business together.
