HMC-500 High-Performance Horizontal Machining Center
HMC-500 High-Performance Horizontal Machining Center
HMC-500 High-Performance Horizontal Machining Center
HMC-500 High-Performance Horizontal Machining Center

HMC-500 High-Performance Horizontal Machining Center

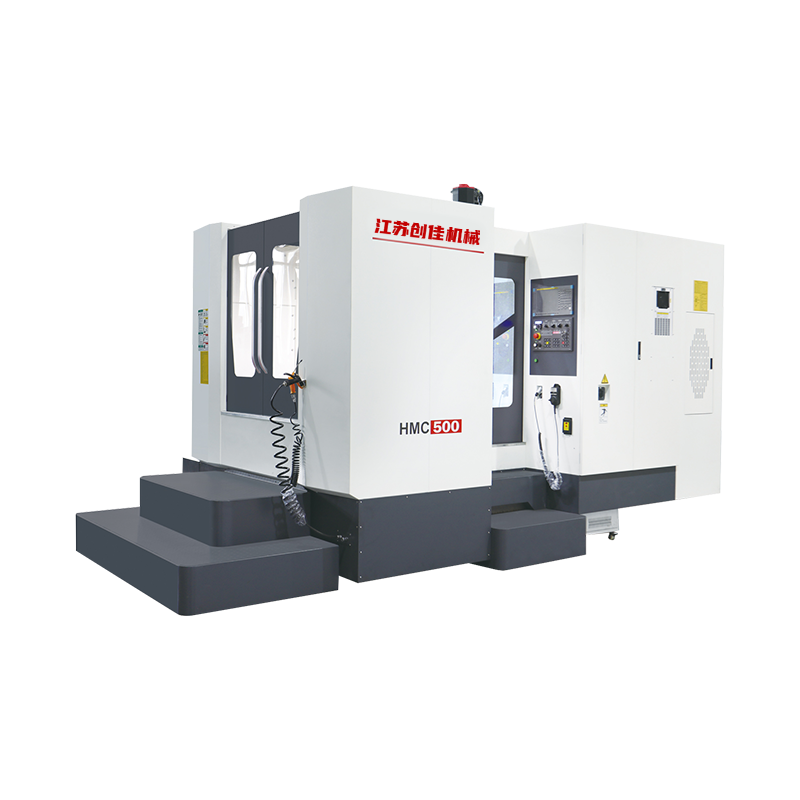

The bed adopts inverted T structure layout, the table moves around (X axis), the headstock moves up and down (Y axis) and the column moves back and forth (Z axis), and is equipped with a rotary table and a tool arm-type tool library. Workpiece once clamping can complete multi-sided milling, drilling, boring, reaming, tapping and other processes, effectively improve efficiency, while reducing the cumulative error caused by the workpiece multiple clamping. Suitable for all kinds of special-shaped parts, box parts processing.
Get A Quote More Products
PREV：HMC-630(Inverted T) Horizontal Machining Center
NEXT：LW860 Horizontal Machining Center
  • Introduction
  • Parameter
  • Product Configuration Table

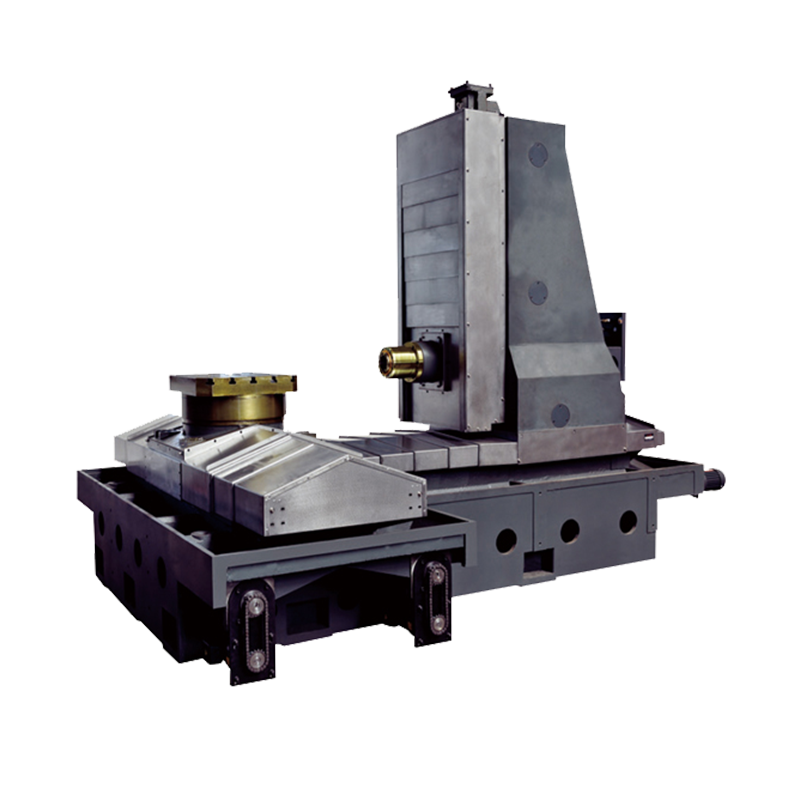

  • · The bed is made of an integrated forming structure, cast of high-strength cast iron material, and heat treated to eliminate internal stress. Through finite element analysis, the reinforcement layout is optimized to fully meet the needs of high-torque cutting by the machine tool. Spiral chute is designed on the left and right sides respectively to facilitate the timely discharge of residual iron filings.

    · Double-wall structure design of the column, multi-point radial reinforcement arrangement inside, large-span section arrangement at the bottom, good rigidity.

    · The finite element structural statics and dynamics analysis of the headstock, reasonable structural design and the combination of reinforcement bars ensure the high rigidity of the headstock and ensure the machining rigidity of the spindle parts.

    · The machine tool is equipped with a rotating table, which reduces the time of machine standby clamping workpiece and greatly improves the processing efficiency. High-precision worm gear drives the rotary table to rotate, and adopts high-precision mouse tooth disk positioning with oil pressure locking mechanism to ensure the clamping of the table and ensure the smooth and vibration of the table during the cutting process.

  • Standard configuration



    HMC-500

    1

    FANUC System

    2

    BT50 Belt Spindle

    3

    BT50-24T tool arm ATC

    4

    500×500 Rotary table (1° indexing)

    5

    Spindle cutting and blowing

    6

    Cutting coolant system

    7

    Self-lubrication system

    8

    Fully enclosed guard

    9

    Spiral chip conveyor

    10

    Standard water tank

    11

    Clean water gun and air gun on operation side

    12

    Electric cabinet heat exchanger

    13

    Working light

    14

    Warning light

    15

    Toolboxes and tools

    16

    Anchor bolt

    17

    Transformer

    Optional configuration

    1

    MITSUBISHI/SIEMENS/SYNTEC

    2

    Chain chip conveyor

    3

    Spindle center outlet 30bar

    4

    Scraper type oil and water separator

    5

    BT50-30T tool arm ATC

    6

    500×500 Rotary table (0.001° indexing)

    7

    Safety door

    8

    Automatic tool measurement system

    9

    Automatic workpiece measurement system

    10
