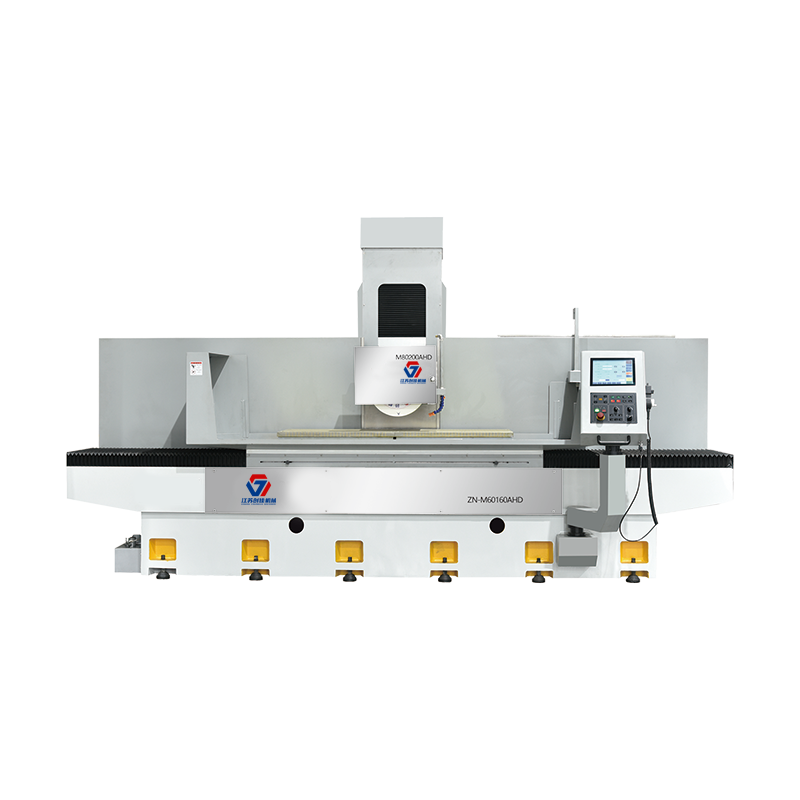

M80160D/M80200D Horizontal Axis Rectangular Table Surface Grinder
M80160D/M80200D Horizontal Axis Rectangular Table Surface Grinder
M80160D/M80200D Horizontal Axis Rectangular Table Surface Grinder
M80160D/M80200D Horizontal Axis Rectangular Table Surface Grinder
M80160D/M80200D Horizontal Axis Rectangular Table Surface Grinder
M80160D/M80200D Horizontal Axis Rectangular Table Surface Grinder
M80160D/M80200D Horizontal Axis Rectangular Table Surface Grinder

M80160D/M80200D Horizontal Axis Rectangular Table Surface Grinder

The machine tool is mainly suitable for the precision grinding of various metal materials, such as plane, step and specific shape, and is widely used in automotive, electronics, medical equipment, precision machinery, mold manufacturing and other industries.
Get A Quote More Products
PREV：No previous article
NEXT：M60120D/M60160D/M60120D Horizontal Axis Table Surface Grinder
  • Introduction
  • Parameter
  • Product Configuration Table

  • M80160D horizontal axis rectangular table surface grinding machine is one of the high performance machine tools with CNC feed control grinding developed by our company. The machine tool structure design is more reasonable, and the machine tool rigidity, accuracy retention and reliability are close. It is mainly suitable for the precision grinding of various metal materials, bevel and specific shape, and is widely used in automotive, electronics, aerospace, medical equipment, precision machinery, mold manufacturing and other industries.

    Structural features:

    ● The machine adopts the worktable to move left and right, and the column to move front and back.

    ● The table adopts double V guide rail structure, which can maintain the machine precision for a long time through precision scraping.

    ● The grinding head is driven by prepressed precision linear guideway and precision ball screw to ensure high precision feed.

    ● The front and back of the column are also driven by pre-pressed precision linear guideway and precision ball screw to ensure high precision feed.

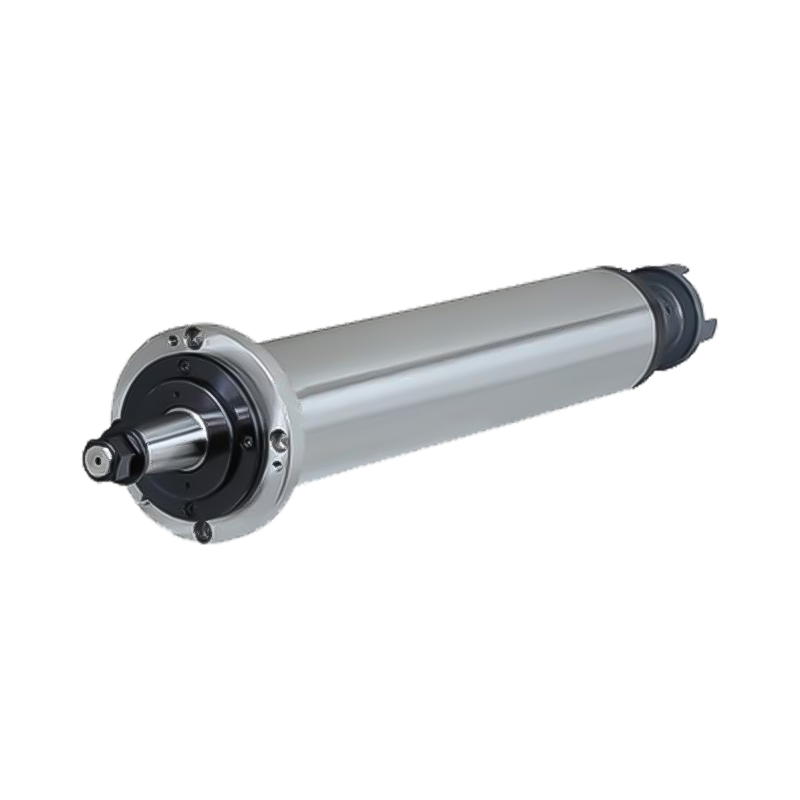

    ● The spindle is a refined grinding head spindle, and the spindle motor is directly connected with the spindle with an elastic coupling.

    ● Y/Z axis servo motor control, can achieve automatic grinding, improve processing efficiency.

    ● Automatic lubrication pump is used to lubricated the screw guide rail to improve the wear life.

    M50100D Horizontal axis rectangular table surface grinding machine function description

    1. Working mode: manual, continuous, semi-automatic, fully automatic

    2. Workbench mode: manual, automatic (grinding head before and after hydraulic pressure, ignore)

    3. Grinding head: stop, run

    4. Hydraulic: stop, run

    5. Water pump: stop, run

    6. Y axis step amount: automatic Y axis front and rear step amount

    7. Automatic grinding, display grinding surplus.

    2. Coarse grinding Z feed rate: each feed amount (unit UM)

    Rough grinding Z Grinding total: total feed (unit UM)

    Grinding Z feed rate: per feed (unit UM)

    Grinding Z Total grinding: Total feed (unit UM)

    Light grinding: no feed grinding times

  • Kind

    Project

    unit

    M80160

    M80200

    Scope of work

    Table size (L×W)

    mm

    1600×800

    2000×800

    The workbench travels left and right

    mm

    1800

    2200

    Forward and backward strokes of the table

    mm

    870

    870

    Maximum load capacity

    kg

    1600

    2000

    Maximum distance from the center of the grinding wheel to the table surface

    mm

    900

    900

    Workbench and front and rear feeding

    Table T-slot

    mm

    3×18×320

    3×18×320

    Table speed

    mm/min

    5-25

    5-25

    Forward and rear automatic feed

    mm

    0.1-10

    0.1-10

    Forward and backward rapid traverse speed

    mm/min

    1200

    1200

    Feed up and down

    Upper and lower handwheel feeds

    mm

    0.001

    0.001

    Upper and lower automatic feeds

    mm

    0.001-0.02

    0.001-0.02

    Up and down fast traverse speed

    mm/min

    750

    750

    Grinding wheel spindle

    Horsepower

    HP/KW

    10/7.5

    10/7.5

    Grinding wheel: outer diameter× inner diameter × thickness

    mm

    400×127×20-50

    400×127×20-50

    Grinding wheel speed

    rpm

    1450

    1450

    Motor

    Front and rear motors

    Kw

    2.2

    2.2

    Upper and lower motors

    Kw

    2.2

    2.2

    Hydraulic motor

    hp

    7.5

    7.5

    Flush motors

    hp

    1/4

    1/4

    Mechanical dimensions

    Long

    mm

    4500

    5500

    Wide

    mm

    3200

    3200

    High

    mm

    2600

    2600

    Device weight

    kg

    9300

    10800

    Power requirements

    Kw

    23

    23

  • Standard configuration

    Seri. No.

    Name

    1

    Toolbox

    2

    Screwdriver

    3

    Electromagnetic chuck

    4

    Grinding wheel wrench

    5

    Grinding wheel

    6

    Grinding wheel clamp

    7

    Grinding wheel balance frame



    8

    Grinding wheel balance mandrel



    9

    Wheel dresser



    10

    Magnetic separator tank

    11

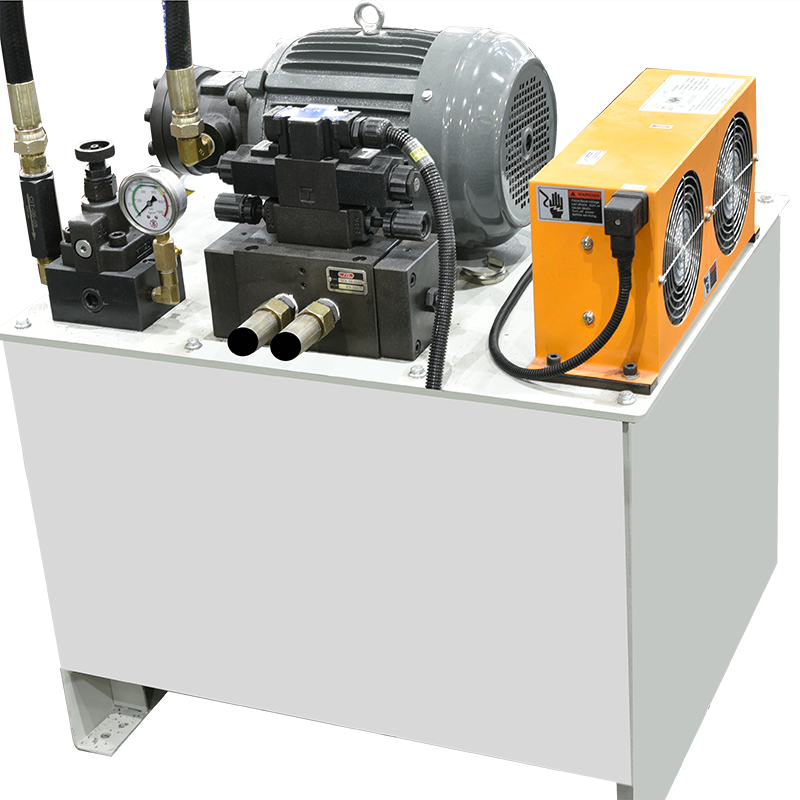

    Hydraulic power station





    Optional configuration

    Seri. No.

    Name

    1

    Fully protected sheet metal

    2

    Dust collector



    3

    Automatic grinding wheel dressing

    4

    Paper tape filter device
