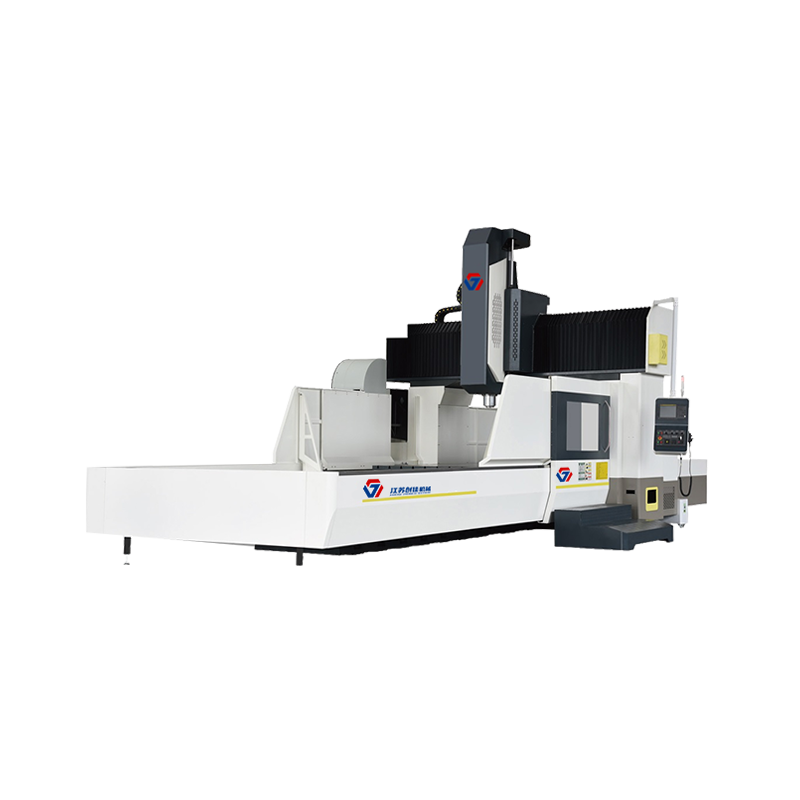

LM4025 Gantry Machining Center
LM4025 Gantry Machining Center
LM4025 Gantry Machining Center

LM4025 Gantry Machining Center

The machine adopts the structure form of fixed gantry frame and moving table on the bed. Beam column integrated design, has the characteristics of high rigidity and precision stability. Standard with high precision belt spindle, to achieve high speed, high precision and powerful cutting combination. Widely used in mold, civil aviation, rail transit, automobile, medical and other high-end manufacturing industries.
Get A Quote More Products
PREV：LM4027 Gantry Machining Center
NEXT：LM3023 Gantry Machining Center
  • Introduction
  • Parameter
  • Product Configuration Table

  • · This series of machine tools adopts the combination configuration of heavy-duty roller linear guide rail and sliding guide rail. On the basis of retaining the high-speed and high-precision linear rail configuration of X and Y axes, it is equipped with the rectangular hard rail configuration of Z axis ram, and the hard rail surface is widened, lengthened and upgraded, so that the recutting ability of the machine tool is significantly improved: The combination of "two lines and one hard" can not only meet the strong cutting of parts under various working conditions, but also the machine tool performance is stable and the accuracy is good.

    · The series of "two lines and one hard" support configuration, strong bearing capacity, improve the strong cutting ability of the machine.

    · Configurable belt drive, gear head, electric spindle, automatic right Angle milling head;

    · Column fixed, beam fixed, table moving fixed beam gantry machining center;

    · Suitable for high-speed, high-precision machining;

    · Mainly used in automotive, energy, construction machinery, automation equipment, mold and other industries parts processing;

    · Beautiful shape, easy to operate.

  • Machine parameters

    unit

    LM3025

    LM4025

    LM5025

    LM6025

    LM8025

    Table size (length × width)

    mm

    3000×2000

    4000×2000

    5000×2000

    6000×2000

    8000×2000

    Maximum table load

    t

    17

    20

    23

    26

    29

    T-slot (number of slots× slot width × spacing)

    mm

    9×22×200

    X-axis travel

    mm

    3200

    4200

    5200

    6200

    8200

    Y-axis travel

    mm

    2500

    Z-axis travel

    mm

    1000

    The distance from the spindle end face to the work surface

    mm

    200-1200

    Gantry width

    mm

    2500

    Spindle specifications



    BT50

    Transmission mode A

    r.p.m

    Belt drive: up to 6000rpm (1.5:1 deceleration optional)

    Transmission mode B



    ZF gearbox + belt drive: up to 6000rpm (two-gear deceleration 1:1; 4：1）

    Transmission mode C



    Gearbox transmission: up to 6000rpm (two-gear deceleration 1:1; 4.4：1）

    Spindle motor power

    Kw

    15/18.5

    15/18.5

    15/18.5

    15/18.5

    15/18.5

    CNC system



    FANUC-0i MF      MITSUBISHI M80     SENMENS   （Optional）

    X/Y/Z axis rapid traverse speed

    mm

    12/12/10

    10/12/10

    10/12/10

    6/12/10

    6/12/10

    Tool magazine capacity

    handful

    24

    24

    24

    24

    24

    Positioning accuracy (X/Y/Z)

    mm

    0.02/0.02/0.016

    0.025/0.02/0.016

    0.03/0.02/0.016

    0.035/0.02/0.016

    0.04/0.02/0.016

    Repeatability (X/Y/Z)

    mm

    0.012/0.012/0.01

    0.016/0.012/0.01

    0.02/0.012/0.01

    0.025/0.012/0.01

    0.03/0.012/0.01

    Air pressure

    kg/cm²

    6

    6

    6

    6

    6

    Machine weight

    T

    40

    44

    48

    52

    56

    Dimensions (L×W×H)

    mm

    9500×5400×5000

    11500×5400×5000

    13500×5400×5000

    15500×5400×5000

    17500×5400×5000

  • Standard configuration

    1

    FANUC System

    2

    BT50 Belt Spindle

    3

    Spindle cutting and blowing

    4

    Cutting coolant system

    5

    Self-lubrication system

    6

    Semi-enclosed guard

    7

    Standard water tank

    8

    Clean water gun and air gun on operation side

    9

    Electric cabinet heat exchanger

    10

    Working light

    11

    Warning light

    12

    Toolboxes and tools

    13

    Anchor bolt

    14

    Transformer

    Optional configuration

    1

    MITSUBISHI/SIEMENS/SYNTEC

    2

    Chain chip conveyor

    3

    BT50-24T tool arm ATC

    4

    BT50 gear spindle

    5

    Spindle center outlet 30bar

    6

    3 axes optical rules

    7

    Scraper type oil and water separator

    8

    Rotary table (4th axis)

    9

    Safety door

    10

    Automatic tool measurement system

    11

    Automatic workpiece measurement system

    12

    Column heightening

    13

    Z-axis travel lengthened

    14

    Manual right Angle milling head

    15

    Fully automatic right Angle milling head
