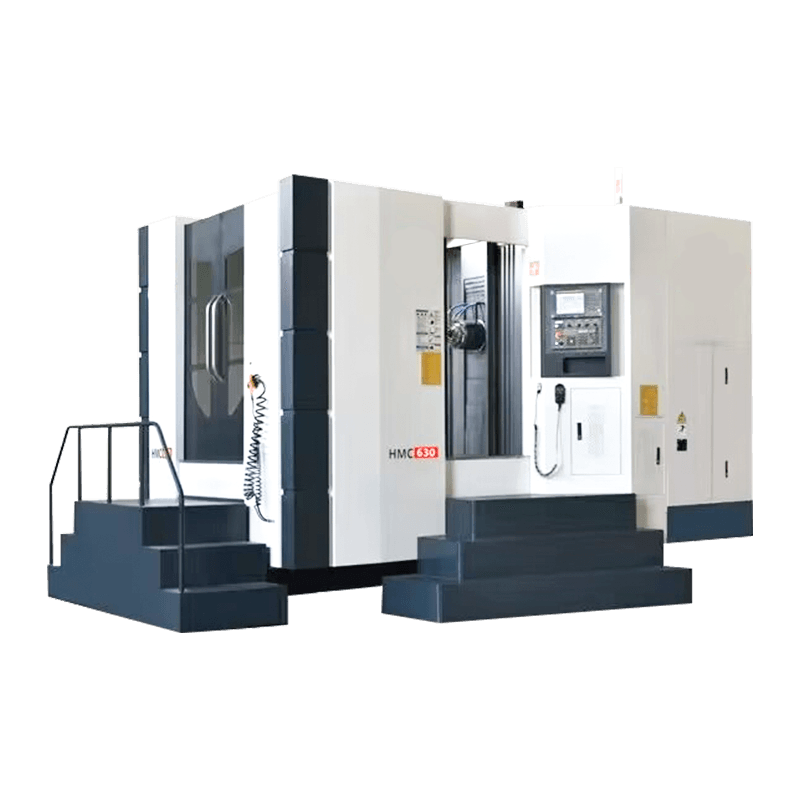

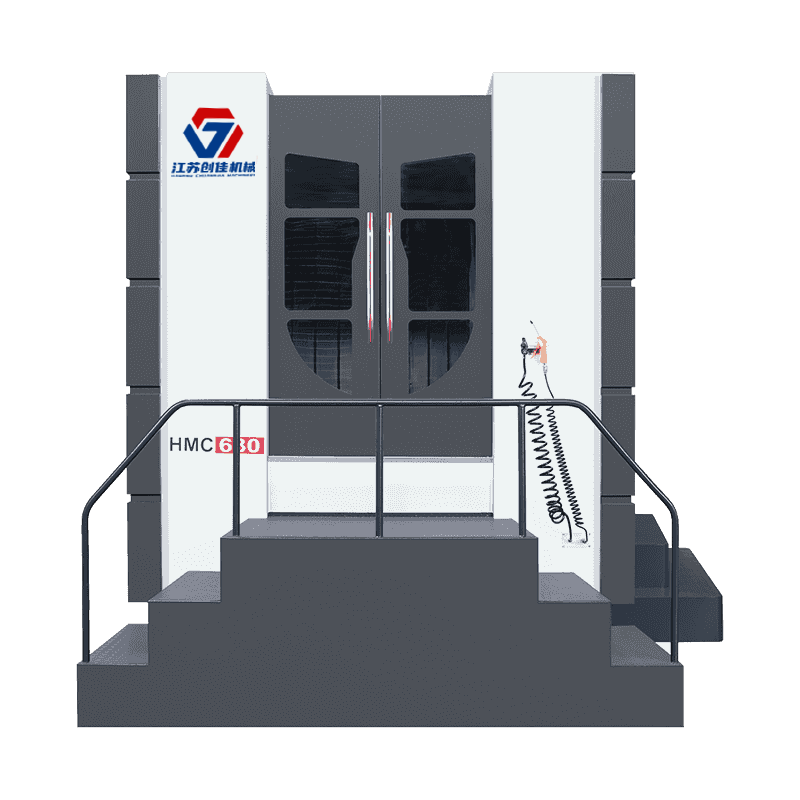

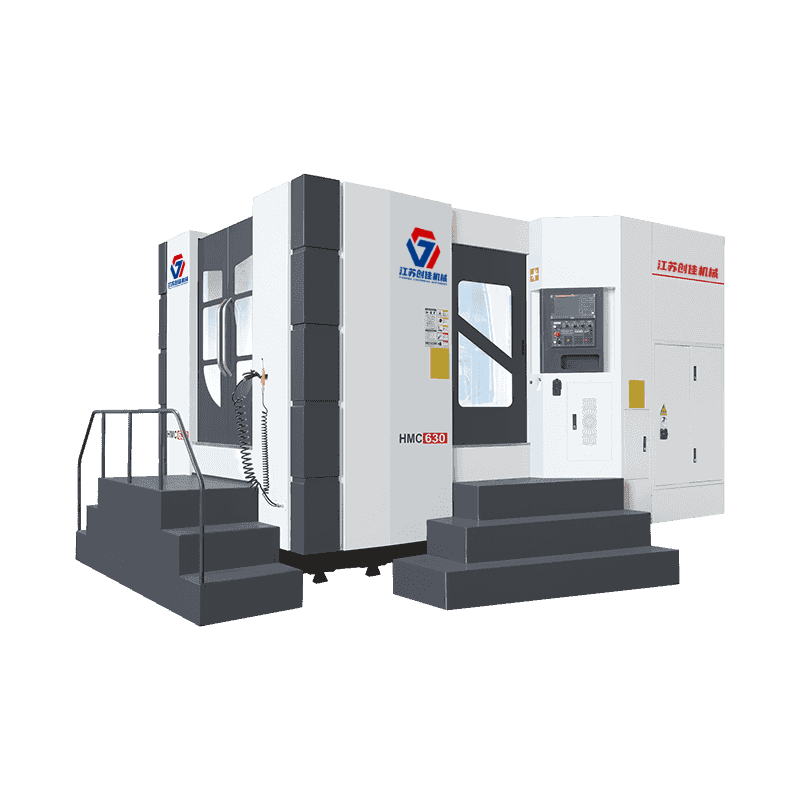

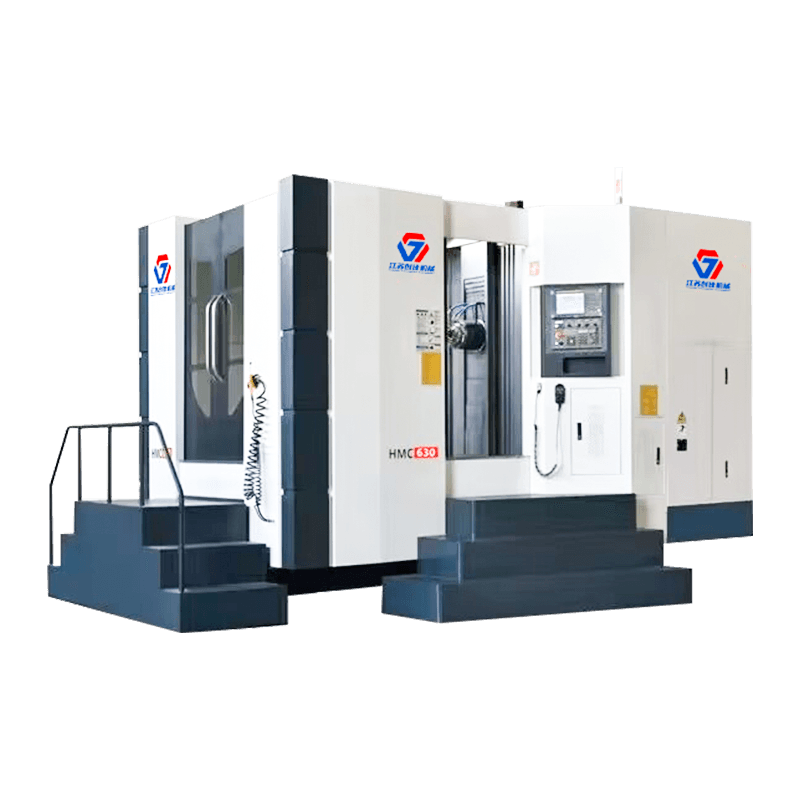

The bed adopts inverted T structure layout, the table moves around (X axis), the headstock moves up and down (Y axis) and the column moves back and forth (Z axis), and is equipped with a rotary table and a tool arm-type tool library. Workpiece once clamping can complete multi-sided milling, drilling, boring, reaming, tapping and other processes, effectively improve efficiency, while reducing the cumulative error caused by the workpiece multiple clamping. Suitable for all kinds of special-shaped parts, box parts processing.
Get A Quote More Products
PREV：HMC-800 (Inverted T) Horizontal Machining Center
NEXT：HMC-500 High-Performance Horizontal Machining Center
  • Introduction
  • Parameter
  • Product Configuration Table

  • · The bed is made of an integrated forming structure, cast of high-strength cast iron material, and heat treated to eliminate internal stress. Through finite element analysis, the reinforcement layout is optimized to fully meet the needs of high-torque cutting by the machine tool. Spiral chute is designed on the left and right sides respectively to facilitate the timely discharge of residual iron filings.

    · Double-wall structure design of the column, multi-point radial reinforcement arrangement inside, large-span section arrangement at the bottom, good rigidity.

    · The finite element structural statics and dynamics analysis of the headstock, reasonable structural design and the combination of reinforcement bars ensure the high rigidity of the headstock and ensure the machining rigidity of the spindle parts.

    · The machine tool is equipped with a rotating table, which reduces the time of machine standby clamping workpiece and greatly improves the processing efficiency. High-precision worm gear drives the rotary table to rotate, and adopts high-precision mouse tooth disk positioning with oil pressure locking mechanism to ensure the clamping of the table and ensure the smooth and vibration of the table during the cutting process.

  • Main technical parameters of horizontal machining center HMC-630

    project

    Main parameters:

    Processing range

    X-axis travel (left and right)

    mm

    1050

    Y-axis travel (up and down)

    mm

    800

    Z-axis travel (front and rear)

    mm

    850

    The distance from the end face of the spindle to the center of the table

    mm

    200-1100

    The distance from the spindle center to the work surface

    mm

    118-968

    workbench

    Number of workbenches

    --

    1

    Table Area(A×B)

    mm

    630×630

    Minimum split angle

    you

    1°

    Maximum load-bearing

    kg

    1200

    T-slots (number of slots× width × spacing)

    mm

    5×20×125

    spindle

    Spindle drive method

    Belt driven

    Spindle taper

    --

    BT50

    Spindle speed

    rpm

    6000

    Spindle power

    Kw

    15/18.5 (Wide Area Motor)

    Spindle torque(S1/S2)

    Nm

    143/191

    Feed drive

    X, Y, Z axis rapid traverse speed

    m/min

    30/30/30

    X, Y, Z axis servo motor power

    Kw

    3/3/3

    X, Y, Z axis servo motor torque

    Nm

    36/36/36

    X, Y, Z axis screw diameter

    mm

    50/50/50

    X, Y, Z heavy-duty linear rail width

    mm

    55/55/55

    Tool magazine

    Tool magazine capacity



    30

    Tool change time

    s

    4.5

    Maximum diameter of the tool

    mm

    125/225

    Maximum length of tool magazine

    mm

    350

    Maximum weight of the tool

    kg

    20

    precision

    Positioning accuracy （VDI 3441）

    mm

    0.008

    Repeatability（VDI 3441）

    mm

    0.005

    B-axis segmentation accuracy （VDI 3441）

    arc-sec

    10

    B-axis repeatability accuracy （VDI 3441）

    arc-sec

    2

    shape

    Length× width × height

    mm

    4500×3500×3500

    weight

    kg

    17000

    Compressed air pressure

    MPa

    0.6

    Machine tool power supply

    V/Hz

    380V/50Hz

  • Standard configuration



    HMC-630(Inverted T)

    1

    FANUC System

    2

    BT50 Belt Spindle

    3

    BT50-30T tool arm ATC

    4

    600×600 Rotary table (1° indexing)

    5

    Spindle cutting and blowing

    6

    Cutting coolant system

    7

    Self-lubrication system

    8

    Fully enclosed guard

    9

    Spiral chip conveyor

    10

    Standard water tank

    11

    Clean water gun and air gun on operation side

    12

    Electric cabinet heat exchanger

    13

    Working light

    14

    Warning light

    15

    Toolboxes and tools

    16

    Anchor bolt

    17

    Transformer

    Optional configuration

    1

    MITSUBISHI/SIEMENS/SYNTEC

    2

    Chain chip conveyor

    3

    BT50 gear headstock

    4

    Spindle center outlet 30bar

    5

    Scraper type oil and water separator

    6

    BT40-40T tool arm ATC

    7

    630×630 Rotary table (0.001° indexing)

    8

    Safety door

    9

    Automatic tool measurement system

    10

    Automatic workpiece measurement system

Factory
