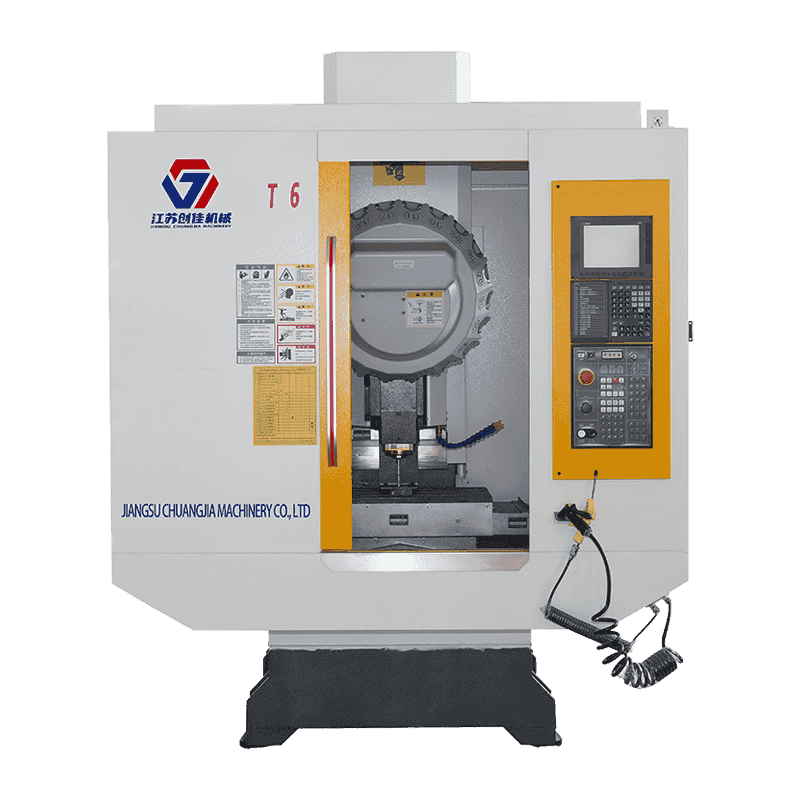

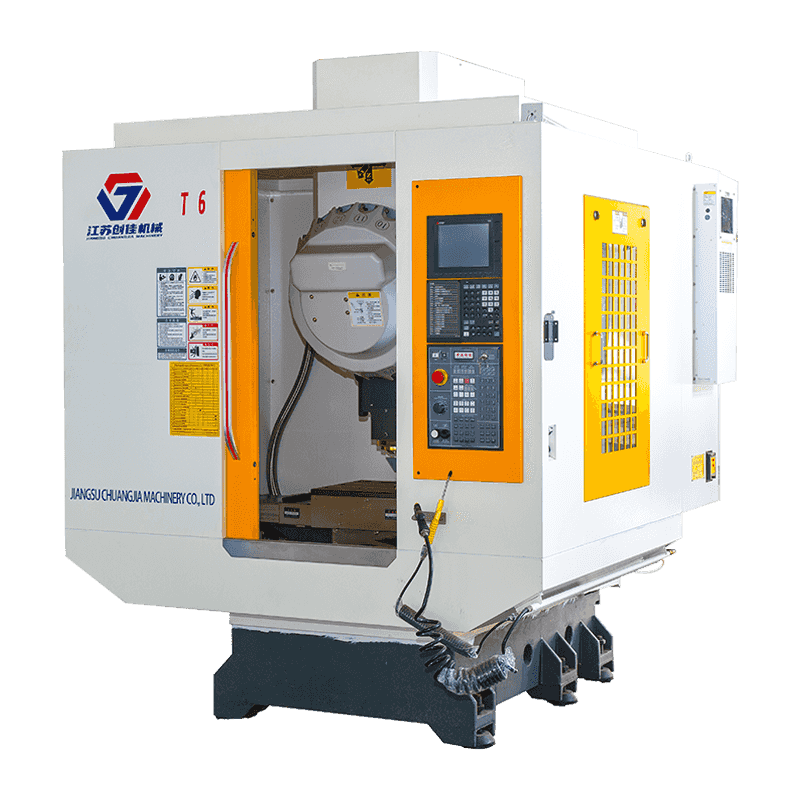

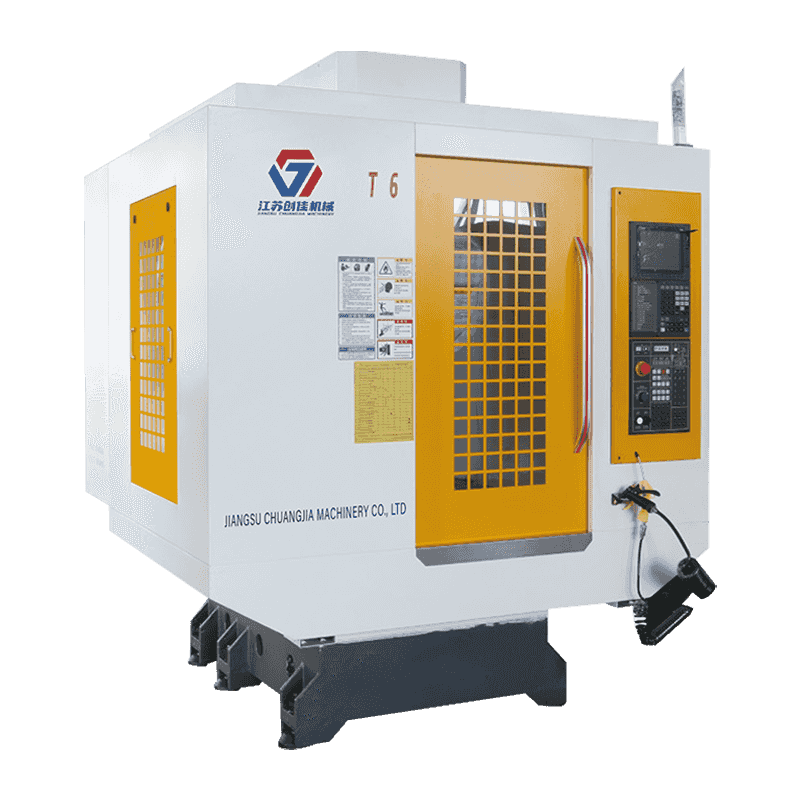

ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center
ZN-T6 Tapping Center

ZN-T6 Tapping Center

Drilling and tapping center ZN-T6 has easy operability, high reliability, ultra-high cost performance, mainly used in general industry, hardware, medical equipment and other industries in the general requirements of small plate parts, disk parts, shell processing.
Get A Quote More Products
PREV：ZN-T8 Tapping Center
NEXT：No next article
  • Introduction
  • Parameter
  • Product Configuration Table

  • Drilling and tapping center ZN-T6 has easy operability, high reliability and high cost performance.

    1. The machine optimization design, to ensure the dynamic rigidity of the equipment, to ensure stable processing;

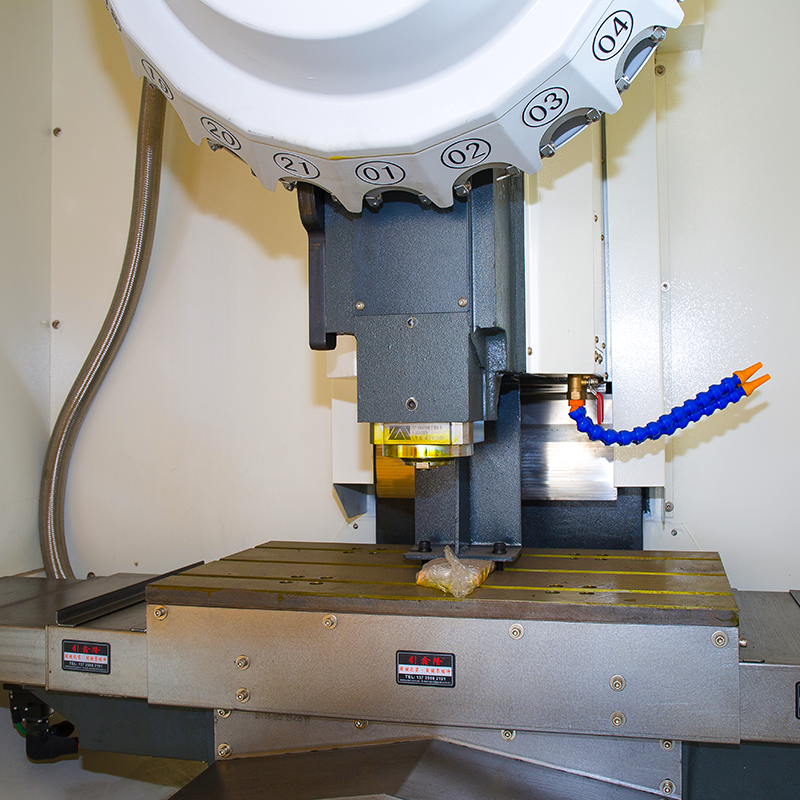

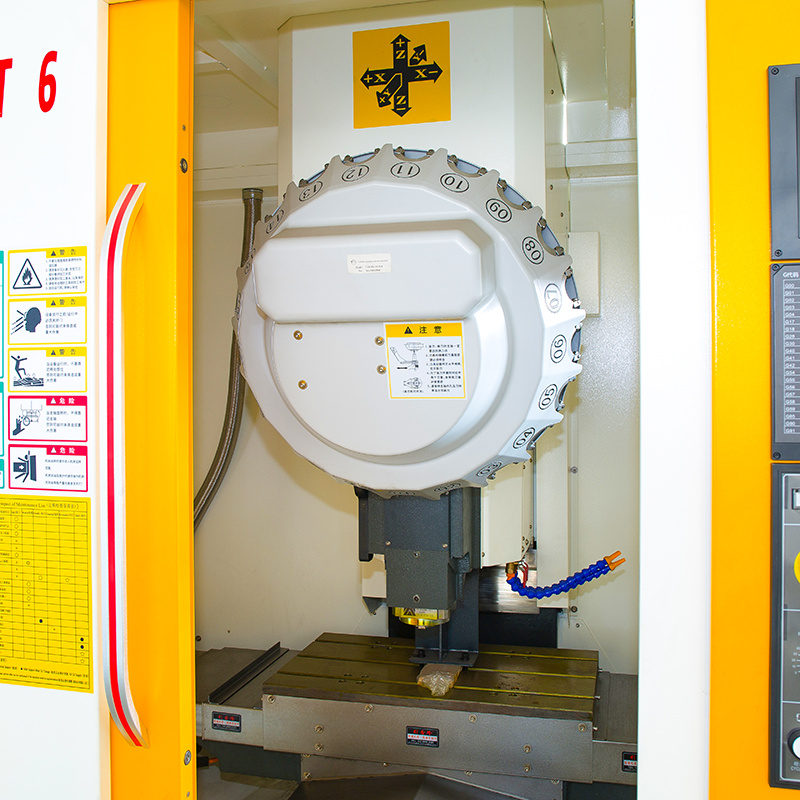

    2. Equipped with 21T umbrella tool magazine, quick and stable knife change;

    3. The machine tool large tilt chip removal Angle, effectively improve the chip removal effect, chassis flushing quickly flush the chip, speed up the cutting fluid reflux speed;

    4. Powerful mechatronics application technology, friendly man-machine interface, simple operation, improve production efficiency.

  • Model/Project

    unit

    ZN-T6

    X-axis travel

    mm

    600

    Y-axis travel

    mm

    400

    Z-axis travel

    mm

    320

    The distance from the spindle nose to the work surface

    mm

    130-450

    Table size

    mm

    700×400

    Table T-slot size



    3×14×125

    Maximum load

    kg

    250

    Spindle speed

    rpm

    Direct connection 20000

    Spindle specifications



    BT30

    Spindle horsepower

    kw

    3.7/5.5

    Linear guide width (X/Y/Z)

    mm

    Balls 30/30/35

    Screw Diameter(X/Y/Z)

    mm

    28/28/32

    X.Y.Z feed rate

    m/min

    20

    X.Y.Z fast moving speed

    m/min

    48/48/48

    Three-axis motor

    kw

    2.5/2.5/2.7

    Tool magazine capacity



    21

    Maximum tool diameter (full/empty)

    mm

    60/80

    Maximum tool length

    mm

    250

    Maximum weight of the tool

    kg

    3

    Positioning accuracy

    mm

    0.008

    Repeatability accuracy

    mm

    0.005

    controller



    Fanuc OIMF

    Electricity demand

    kw

    15

    Machine weight

    kg

    3000

    Machine size

    mm

    1900*2340*2450

  • Standard configuration

    1

    FANUC System

    2

    BT30-20000 rpm Spindle

    3

    21T umbrella type tool magazine

    4

    Spindle cutting and blowing

    5

    Cutting coolant system

    6

    Self-lubrication system

    7

    Fully enclosed guard

    8

    Chassis flush

    9

    Standard water tank

    10

    Clean water gun and air gun on operation side

    11

    Electric cabinet heat exchanger

    12

    Working light

    13

    Warning light

    14

    Toolboxes and tools

    15

    Anchor bolts

    16

    Transformer

    Optional configuration

    1

    MITSUBISHI/SYNTEC/HuaZhong

    2

    BT30-24000 rpm Spindle

    3

    21T umbrella servo tool magazine

    4

    Rotary table 4th axis

    5

    Column heightening

    6

    Safety door

    7

    Automatic tool measurement system

    8

    Oil mist collector

Factory

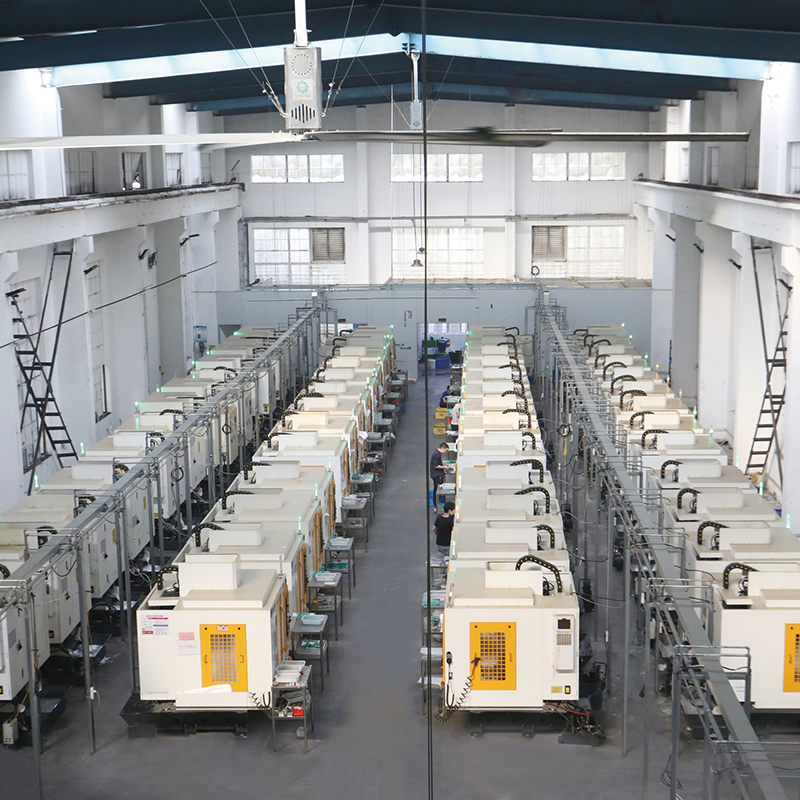

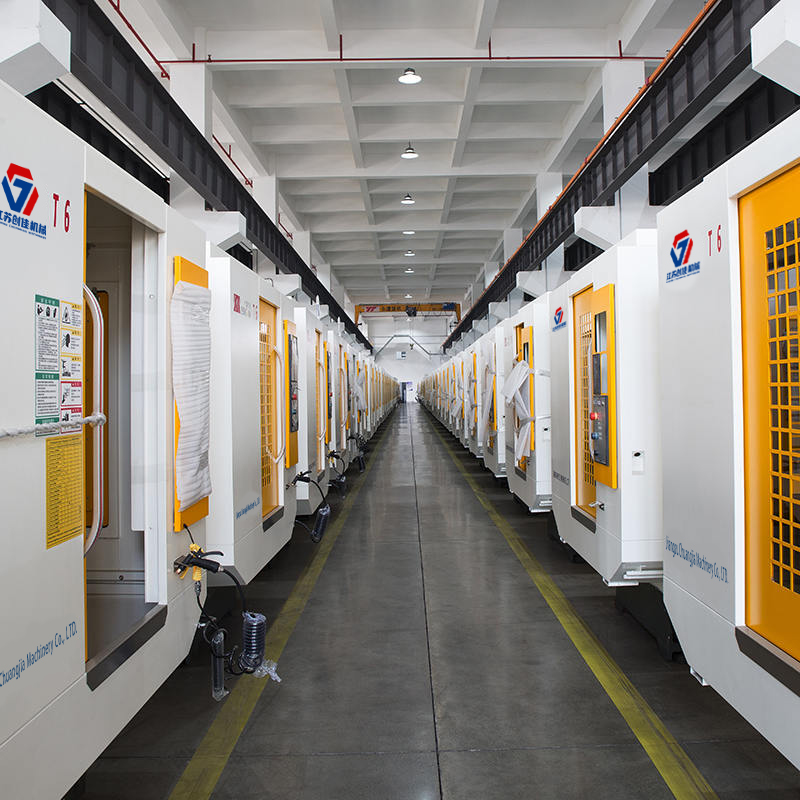

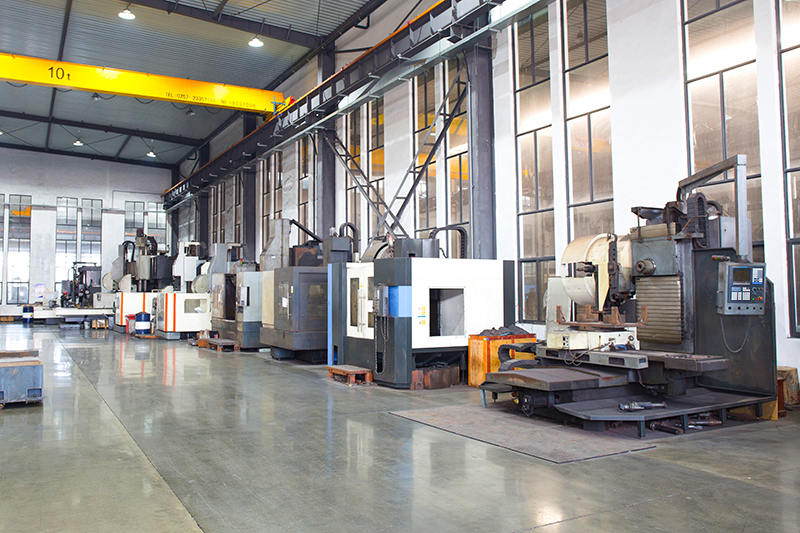

  • Factory equipment
  • Factory equipment
  • Factory equipment

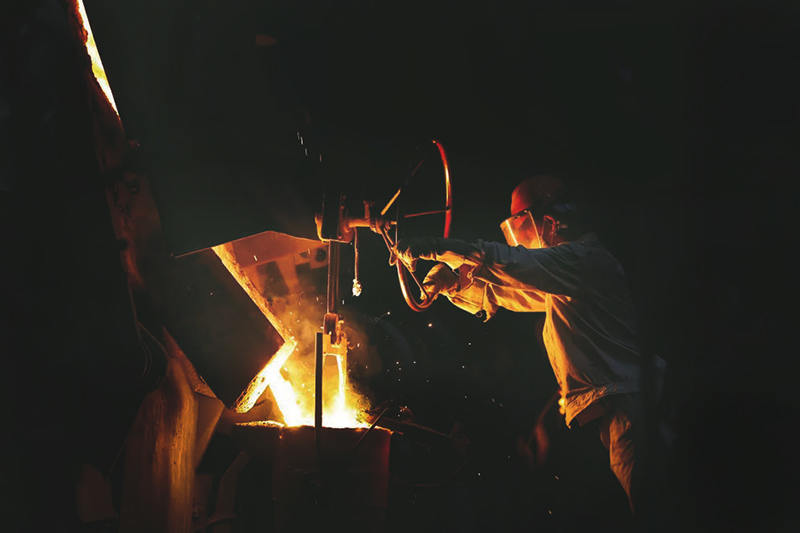

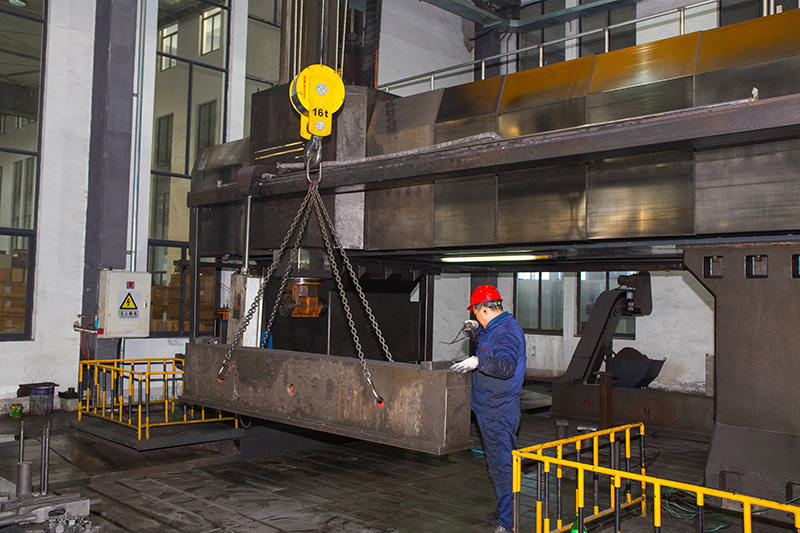

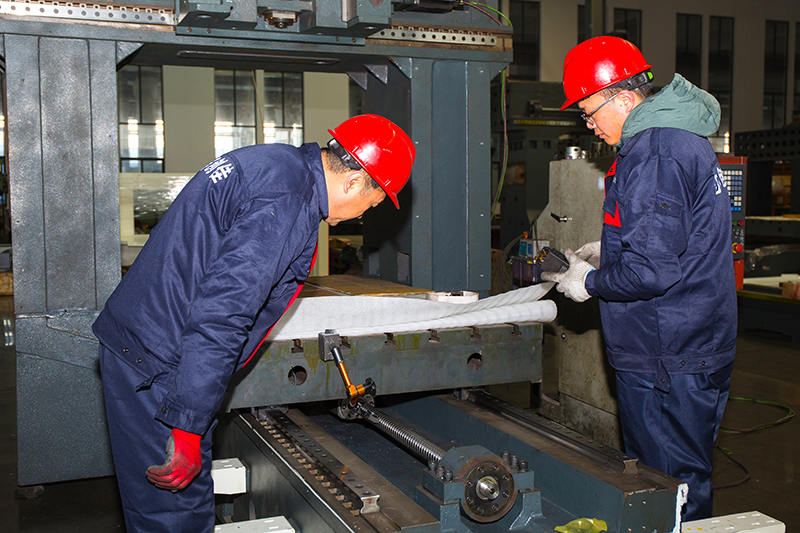

  • Production process
