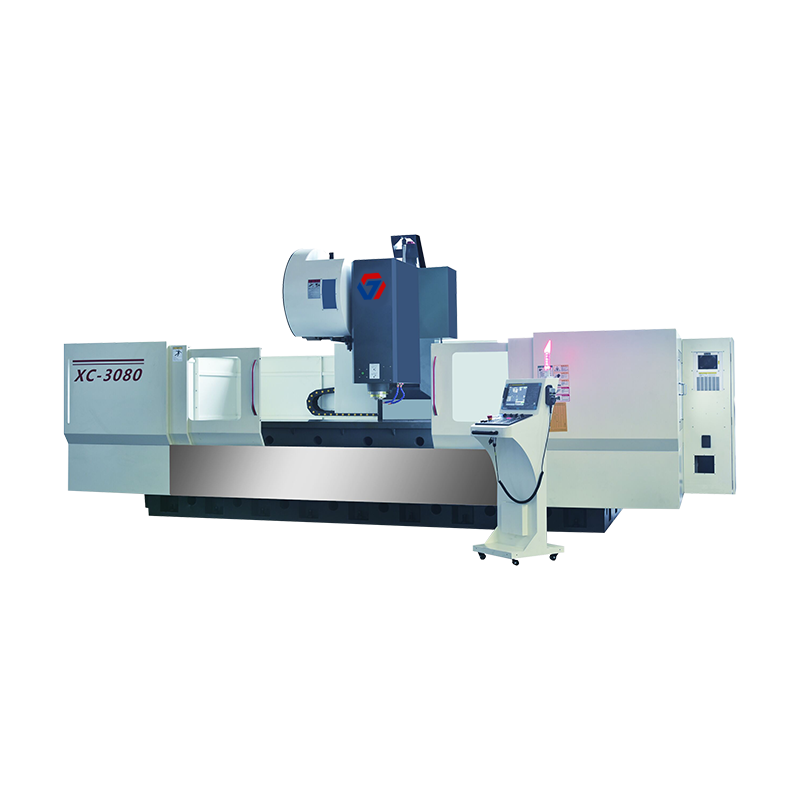

ZN-XC3080 Moving Column Typebar Processing Machine
ZN-XC3080 Moving Column Typebar Processing Machine

ZN-XC3080 Moving Column Typebar Processing Machine

Mainly process the internal profiles of rail transit locomotives; Narrow and long parts of automobiles; TV frames, refrigerator frames, communication equipment shells, aluminum alloy profiles, aluminum-wood composite profiles, copper profiles, PVC profiles, etc.
Get A Quote More Products
PREV：No previous article
NEXT：ZN-XC2250 Moving Column Type Bar Processing Machine
  • Introduction
  • Parameter
  • Product Configuration Table

  • Profile machining center ZN-XC3080 has high reliability, high stability and high efficiency.

    1. The machine adopts high bed structure to effectively protect the water chips from splashing outside the equipment, and effectively protect the guide rail, screw and other important parts to improve the life and reliability of the equipment;

    2. Standard three-axis screw, to meet the needs of higher machining accuracy, equipment dynamic performance is better, higher acceleration;

    3. The bottom of the table is designed with a large bevel, which is more convenient for cleaning and chip removal;

    4. Mainly used in: automobile, rail transit, machinery manufacturing and other industries of aluminum, steel profile processing.

  • Machine parameters

    unit

    XC3080

    XC4080

    XC5080

    XC6080

    Table size (length × width)

    mm

    3200×800

    4200×800

    5200×800

    6200×800

    Maximum table load

    kg/m²

    1500

    T-slot (number of slots× slot width × spacing)

    mm

    5×22×160

    X-axis travel

    mm

    3100

    4100

    5100

    6100

    Y-axis travel

    mm

    800

    Z-axis travel

    mm

    680

    The distance from the spindle end face to the work surface

    mm

    200-880

    The distance from the center of the spindle to the face of the column guide

    mm

    815

    Spindle specifications



    BT50

    Spindle speed (standard)

    r.p.m

    6000

    Spindle transmission mode



    Gearing

    Spindle motor power

    KW

    15/18.5

    Spindle torque(S1/S2)

    NM

    257/344

    CNC system



    FANUC-0i MF

    X/Y/Z axis rapid traverse speed

    mm

    15/15/15

    15/15/15

    15/15/15

    12/15/15

    Tool magazine capacity

    handful

    24

    Positioning accuracy (X/Y/Z)

    mm

    0.016/0.01/0.01

    0.02/0.01/0.01

    0.025/0.01/0.01

    0.03/0.01/0.01

    Repeatability (X/Y/Z)

    mm

    0.012/0.008/0.008

    0.012/0.008/0.008

    0.016/0.008/0.008

    0.02/0.008/0.008

    Machine weight

    kg

    14000

    17000

    20000

    23000

    Dimensions (L×W×H)

    mm

    6500×3300×3400

    7500×3300×3400

    8500×3300×3400

    9500×3300×3400

  • Standard configuration

    1

    FANUC

    2

    BT40 Belt Spindle

    3

    24T tool arm ATC

    4

    Spindle cutting and blowing

    5

    Cutting coolant system

    6

    Self-lubrication system

    7

    Semi-enclosed guard

    8

    Standard water tank

    9

    Clean water gun and air gun on operation side

    10

    Electric cabinet heat exchanger

    11

    Working light

    12

    Warning light

    13

    Toolboxes and tools

    14

    Anchor bolts

    15

    Transformer

    Optional configuration

    1

    MITSIBBSHI/SIEMENS/SYNTEC

    2

    Chain chip conveyor

    3

    BT40-12000 rpm direct spindle

    4

    Spindle oil cooler

    5

    Spindle center outlet 30bar

    6

    Scraper type oil and water separator

    7

    Rotary table (4th axis)

    8

    Automatic tool measurement system

    9

    Automatic workpiece measurement system
