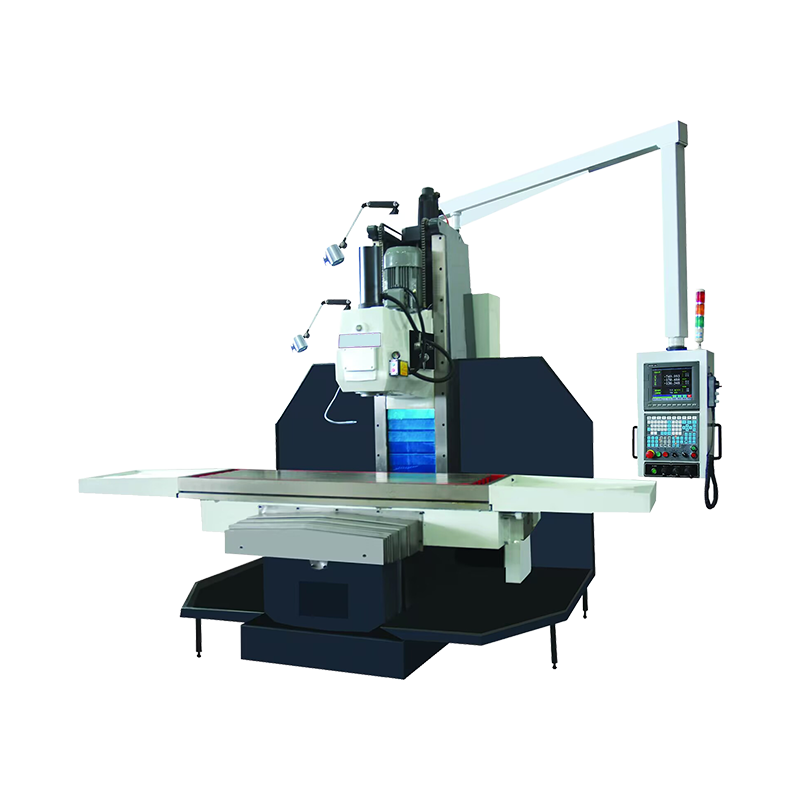

XKQ1850 CNC Power Milling Machine
XKQ1850 CNC Power Milling Machine

XKQ1850 CNC Power Milling Machine

Equipped with one vertical and one horizontal gear headstock, the output torque is large, the cutting force is strong. Once clamping, the upper plane and side plane can be processed at the same time, which greatly improves the processing efficiency. Widely used in mold, automotive and other industries.
Get A Quote More Products
PREV：No previous article
NEXT：No next article
  • Introduction
  • Parameter
  • Product Configuration Table

  • Compact structure, small footprint, with strong frame rigidity, fast moving speed, high processing efficiency.

    Worktable guide rail 55° dovetail hard rail, bed four guide rail support, strong rigidity. All three axes are driven by precision ball screw with high machining accuracy.

    Spindle box mechanical gear shift, manual transmission, spindle torque, to meet the processing requirements.

    The CNC system has a friendly man-machine interface, simple operation, and significantly improves production efficiency.

  • Machine parameters

    unit

    XKQ1850

    XKQ2150

    XKQ2250

    Workbench area

    mm

    1800 X 500

    2100 X 500

    2250 X 500

    Maximum load on the table

    kg

    		 1800

    2800

    2000

    Left and right travel (X-axis)

    mm

    		 1200

    1600

    1600

    Forward and backward travel (Y-axis)

    mm

    		 650

    680

    650

    Up and down stroke of milling head (Z-axis)

    mm

    		 680

    700

    680

    The distance from the center of the spindle to the front of the stage

    mm

    		 550

    650

    550

    Spindle nose-to-table distance

    mm

    		 100-780

    0-700

    100-780

    Spindle taper

    		   NT50

    NT50

    NT50

    Spindle speed

    		 r/min 50-1430

    50-1430

    50-1430

    The number of spindle speed stages

    		   Level 12

    Level 12

    Level 12

    Fast forward speed

    		 mm/min 6

    6

    6

    Repeatability accuracy

    		   0.01

    0.01

    0.01

    Spindle motor

    kw

    		 9

    9

    9

    Servo motor

    		   4.7kw 26N.m

    4.7kw 26N.m

    4.7kw 26N.m

  • Standard configuration

    1

    SYNTEC

    2

    NT50 gear spindle

    3

    Spindle cutting and blowing

    4

    Cutting coolant system

    5

    Pneumatic tool release device

    6

    Self-lubrication system

    7

    Semi-enclosed guard

    8

    Standard water tank

    9

    Electric cabinet heat exchanger

    10

    Working light

    11

    Warning light

    12

    Toolboxes and tools

    13

    Anchor bolts

    14

    Transformer
